Universal Single Bitts.
ASTM A27-70-36 Cast Steel
UMC-492: Single Bitt 8″ Heavy Duty – 03720-301A
UMC-530: Single Bitt 8″ – 08000-301A

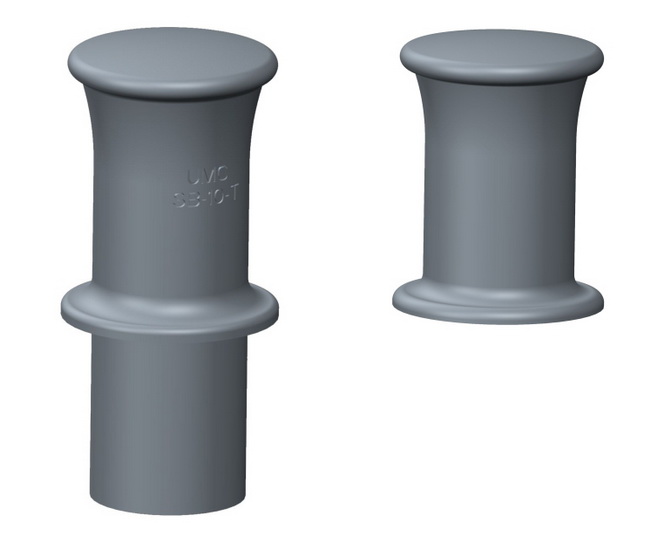

UMC-SB10-T: Single Bitt 10″ Thru-Deck- 01142-301A

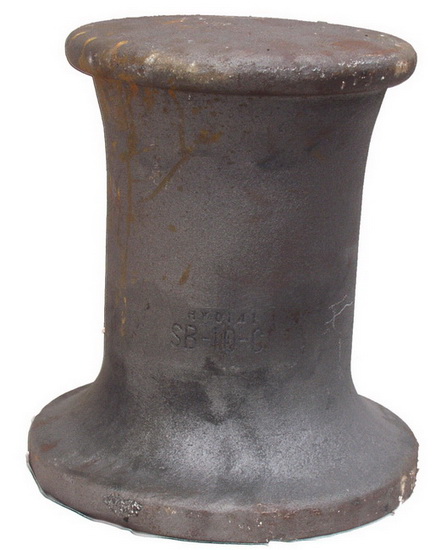

UMC-SB10: Single Bitt 10″ – 01140-301A
| Model Number | Description | Downloads | Part Number | Weight Total Lbs (Kgs.) |
|---|---|---|---|---|
| UMC-492 | 8″ Square Base Thru-Deck Single Bitt (Heavy Duty) | 03720-301A | 370 (168) | |
| UMC-530 | 8″ Round Base Thru-Deck Single Bitt | 08000-301A | 260 (118) | |
| UMC-SB10T | 10″ Round Base Thru-Deck Single Bitt | 01142-301A | 292 (132) | |
| UMC-SB10 | 10″ Round Base Flush-Weld Single Bitt | 01140-301A | 190 (86) |
