Certification
This Weathertight Door is ABS Certified for use on ABS classed vessels or facilities by the American Bureau of shipping on ABS Certificate Number: 23-2371969-PDA.
6 Dog Weathertight doors are perfect for easy access to any compartment on your vessel above the waterline. Our doors are fabricated from high quality ¼” steel plate and built to ABS and Lloyd’s Specifications. These doors feature 6 dogs and are built to provide continuous trouble-free use. Various standard sizes are available in both right and left hand orientation.
Feature Description
Opening orientation can be determined by standing on the outside of the compartment with the door swinging toward you. Right-hand doors will have the hinges on the right from this perspective. Conversely, a left-hand door will have the hinges on the left.
When Ordering Please Specify:
Clear Opening – 26″ x 60″ / 30″ x 60″ / 30″ x 66″ / 30″ x 72″
Opening Orientation – Left Hand Door / Right Hand Door
Weathertight Doors are commonly found on exterior and interior bulkheads of any vessel.
Steel (ASTM A36)
Painted Primer Grey

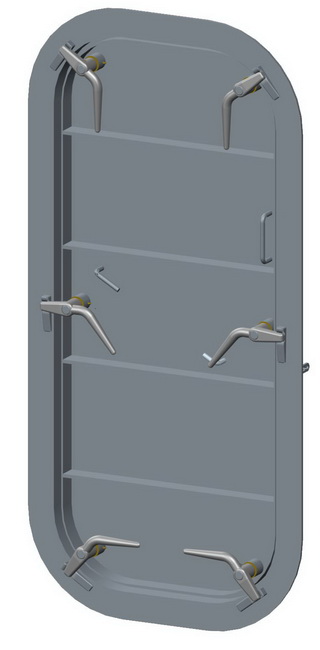

UMC-WTD-6D-26×60-R (Back)
| Model Number | Description | Part Number | Handeling | Clear Opening In. (mm) | Downloads | Weight Total Lbs (Kgs.) |
|---|---|---|---|---|---|---|
| UMC-WTD-6D-26×60-R | 26″ x 60″ Opening / Right Handed | 06121-101C | RH | 26″ x 60″ (660 x 1524) | Cutout & CAD Files: PDFDXF |
270 (122.5) |
| UMC-WTD-6D-26×60-L | 26″ x 60″ Opening / Left Handed | 06121-101D | LH | 26″ x 60″ (660 x 1524) | Cutout & CAD Files: PDFDXF |
270 (122.5) |
| UMC-WTD-6D-30×60-R | 30″ x 60″ Opening / Right Handed | 06121-101E | RH | 30″ x 60″ (762 x 1524) | Cutout & CAD Files: PDFDXF |
300 (136) |
| UMC-WTD-6D-30×60-L | 30″ x 60″ Opening / Left Handed | 06121-101F | LH | 30″ x 60″ (762 x 1524) | Cutout & CAD Files: PDFDXF |
300 (136) |
| UMC-WTD-6D-30×66-R | 30″ x 66″ Opening / Right Handed | 06121-101G | RH | 30″ x 66″ (762 x 1676) | Cutout & CAD Files: PDFDXF |
330 (150) |
| UMC-WTD-6D-30×66-L | 30″ x 66″ Opening / Left Handed | 06121-101H | LH | 30″ x 66″ (762 x 1676) | Cutout & CAD Files: PDFDXF |
330 (150) |
| UMC-WTD-6D-30×72-R | 30″ X 72″ Opening / Right Handed | 06121-101I | RH | 30″ x 72″ (762 x 1829) | Cutout & CAD Files: PDFDXF |
350 (159) |
| UMC-WTD-6D-30×72-L | 30″ X 72″ Opening / Left Handed | 06121-101J | LH | 30″ x 72″ (762 x 1829) | Cutout & CAD Files: PDFDXF |
350 (159) |
Disclaimer of Liability: PDF Cutout drawings and Autocad® Cutout drawings (the “Drawings”) are provided for convenience only without warranty of any kind. Baier makes no representation regarding the completeness, accuracy, reliability, timeliness or compatibility of the Drawings or that the Drawings will be error-free. Baier assumes no responsibility or liability for anyone's use of the Drawings, and Baier shall not be liable for any loss or damage of whatever nature (direct, indirect, consequential, or other) whether arising in contract, tort or otherwise, which may arise as a result of anyone’s use of the Drawings.
We are working to complete our library of available drawings for our customers. If the drawing you want does not appear, is too large or otherwise unsuitable for your use, please contact us and we will investigate alternatives for you.
This website is independent of Autodesk®, Inc., and is not authorized by, endorsed by, sponsored by, affiliated with, or otherwise approved by Autodesk®, Inc.
For a complete list of all available Baier Products formatted in PDF and DXF, go to our Download Library.
